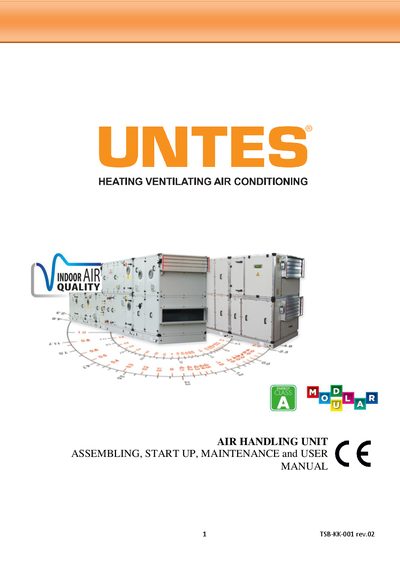

The Untes TSB‑KK‑001 air handling unit manual covers specifications, installation, operation, maintenance and troubleshooting.
This manual provides detailed information for the Untes TSB‑KK‑001 air handling unit, including general specifications, transportation and storage guidelines, and step‑by‑step installation instructions. It also describes the unit’s components such as dampers, filters, coils, heat‑recovery units and humidifiers.
Safety warnings, regular maintenance procedures, belt tension checks, pulley replacement, service and spare‑part information, as well as troubleshooting tips and motor data are included to help users operate and maintain the unit safely and efficiently.
| Casing Strength | 0 < Bending ≤ 4 mm/m |
|---|---|
| Casing Air Leakage (+700 Pa) | ≤ 0.22 lt/sec·m² |
| Thermal Transmittance (U) | 1.0 < U ≤ 2.0 W/m²·°C |
Do not store the unit where relative humidity exceeds 80 % or temperature is below –20 °C or above 40 °C.
