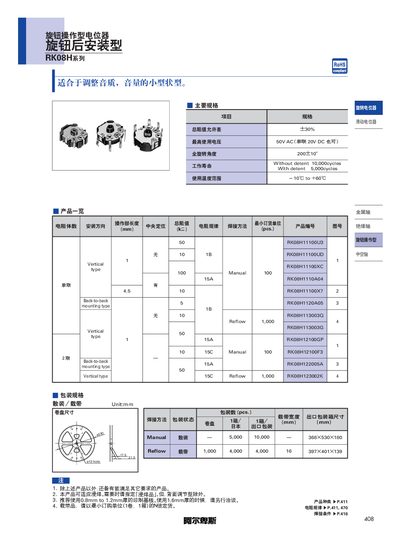

This document provides specifications, mechanical dimensions, resistance curves, and soldering conditions for the RK08H series knob-operated potentiometers.
The RK08H series consists of small, knob-operated potentiometers designed for adjusting audio quality and volume. The series is available in various configurations, including hollow shafts, metal shafts, and insulated shafts, suitable for vertical mounting or back-to-back mounting. It offers options for single or dual gang units with different resistance laws (15A, 1B, 3B, 15C) and total resistance values ranging from 5kΩ to 100kΩ. This manual is written in Chinese.
| Operating Life (With detent) | 5,000 cycles |
|---|---|
| Recommended PCB Thickness | 0.8mm to 1.2mm |
Yes, the product can adapt to immersion soldering, but back-to-back mounting types are excluded.
A printed circuit board thickness of 0.8mm to 1.2mm is recommended.
