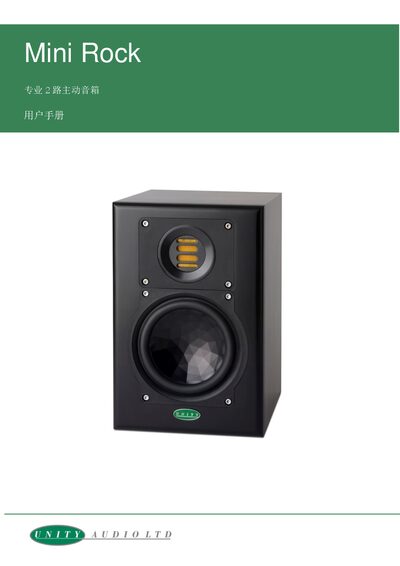

The Unity Audio Mini Rock user manual provides safety guidelines, setup, maintenance, placement tips, and specifications for the 2‑way active monitor speaker.
This manual covers important safety instructions, design concepts, and handling precautions for the Mini Rock professional 2‑way active speaker. It explains humidity considerations, break‑in procedures, power voltage selection, fuse replacement, and routine maintenance to ensure reliable operation.
Detailed sections describe optimal speaker placement, rear‑panel controls, input connections, and full technical specifications. Warranty information and contact details for Unity Audio are also provided. This manual is written in Chinese.
| Type | 2‑way active monitor speaker |
|---|---|
| Crossover Frequency | 2.7 kHz |
| Amplifier | 2 × Class D 180 W |
| Total Output Power | 360 W |
| Input Sensitivity / Impedance | +4 dB / 20 kΩ (balanced XLR) |
| Power Requirements (EU) | 220‑240 V AC, 50 Hz |
| Power Requirements (US/CA) | 110‑120 V AC, 60 Hz |
| Fuse Rating | 1.6 A (230 V) / 2.5 A (115 V) |
| Dimensions (W×H×D) | 184 mm × 279 mm × 256 mm |
| Weight | 6.5 kg |
Ensure the voltage selector switch on the back of the Mini Rock is set to the correct regional voltage before powering on.
The Mini Rock can deliver sound pressure levels exceeding 105 dB SPL.
