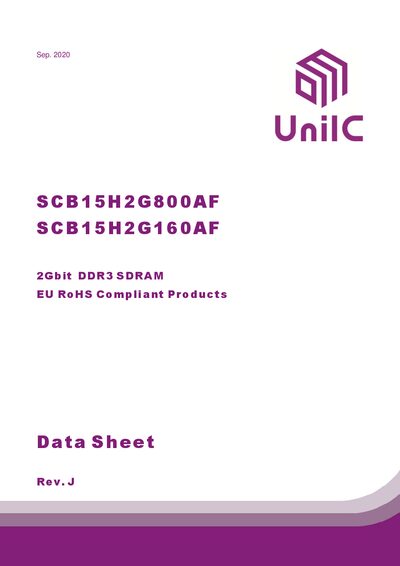

Technical data sheet for the UniIC SCB15H2G80/160AF 2‑Gbit DDR3 SDRAM memory component.
The UniIC SCB15H2G80/160AF DDR3 SDRAM is a 2‑Gbit memory device available in x8 and x16 configurations. The data sheet provides detailed specifications, features, package information, and electrical characteristics for designers.
Key sections cover addressing, package ball‑out, input/output signal descriptions, operating conditions, speed bins, timing parameters, and IDD power consumption. The document also includes product nomenclature and ordering information for various temperature‑grade variants.
| Supply voltage (VDD, VDDQ) | 1.5 V ± 0.075 V (compatible with 1.35 V operation) |
|---|---|
| Data rates | 1066 Mbps / 1333 Mbps / 1600 Mbps |
| CAS latency (CL) | 5‑13 |
| Package (x8) | PG‑TFBGA‑78 |
| Commercial temperature range | 0 °C to 95 °C |
| Page size (x8) | 1 KB |
| Page size (x16) | 2 KB |
The device operates at 1.5 V ± 0.075 V and is backward compatible with 1.35 V operation.
It supports data rates of 1066 Mbps, 1333 Mbps, and 1600 Mbps.
Commercial range 0 °C‑95 °C, Industrial –40 °C‑95 °C, Automotive A1 –40 °C‑125 °C, A2 –40 °C‑105 °C, A3 –40 °C‑95 °C, High‑Reliability X –55 °C‑125 °C.
The x8 version uses a PG‑TFBGA‑78 package, while the x16 version uses a PG‑TFBGA‑96 package.
