The Unicore UR370 is a high‑precision GNSS CORS receiver supporting BDS, GPS and GLONASS on seven frequencies, with 16 GB storage and multiple interfaces.
The UR370 is a next‑generation CORS receiver from Unicore that tracks BDS B1/B2/B3, GPS L1/L2 and GLONASS L1/L2 signals, delivering millimeter‑level carrier‑phase observations for surveying, meteorology, seismic and scientific applications. It uses the domestically developed Nebulas™ multi‑system, multi‑frequency SoC chip and runs an embedded Linux OS.

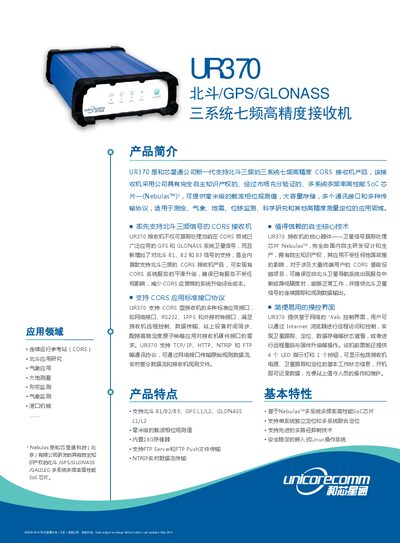

The receiver offers a web‑based control interface accessible via any browser, and supports TCP/IP, HTTP, NTRIP and FTP protocols for remote control, data transfer and time synchronization. Physical interfaces include network, RS‑232, 1PPS and external clock ports, with a TNC antenna connector and 16 GB internal storage. This manual is written in Chinese.
| Power input voltage | 4.75 ~ 5.10 V |
|---|---|
| Storage capacity | 16 GB |
| Dimensions | 265 mm × 194 mm × 77 mm |
| Operating temperature range | -40 °C to +65 °C |
| Carrier‑phase observation accuracy | 1 mm |
| Supported satellite signals | BDS B1/B2/B3, GPS L1/L2, GLONASS L1/L2 |
| Communication protocols | TCP/IP, HTTP, NTRIP, FTP |
It supports BDS (B1/B2/B3), GPS (L1/L2) and GLONASS (L1/L2) signals.
The receiver provides a web‑based control interface and supports TCP/IP, HTTP, NTRIP and FTP protocols for remote operation and data transfer.
The device includes a built‑in 16 GB storage module.
