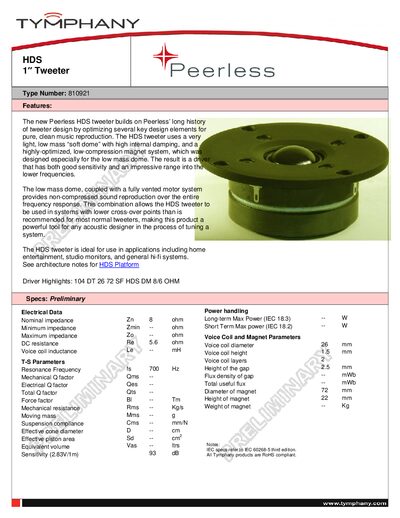

The Tymphany 810921 tweeter datasheet provides specifications such as power handling, voice coil dimensions, impedance, and T‑S parameters.
The HDS 1" tweeter (model 810921) is designed for home entertainment, studio monitors, and hi‑fi systems, offering high sensitivity and a wide frequency range. It features a lightweight soft‑dome and a low‑mass vented motor for clean, non‑compressed sound.
The datasheet lists detailed technical data, including power handling limits, voice‑coil and magnet dimensions, electrical impedance, DC resistance, resonance frequency, and sensitivity, along with T‑S parameters for system design.
| Nominal impedance | 8 ohm |
|---|---|
| DC resistance | 5.6 ohm |
| Resonance frequency | 700 Hz |
| Sensitivity (2.83 V/1 m) | 93 dB |
| Voice coil diameter | 26 mm |
| Voice coil height | 1.5 mm |
| Voice coil layers | 2 |
| Height of the gap | 2.5 mm |
| Diameter of magnet | 72 mm |
| Height of magnet | 22 mm |
The nominal impedance is 8 ohms.
The resonance frequency is 700 Hz.
The sensitivity is 93 dB (2.83 V/1 m).
