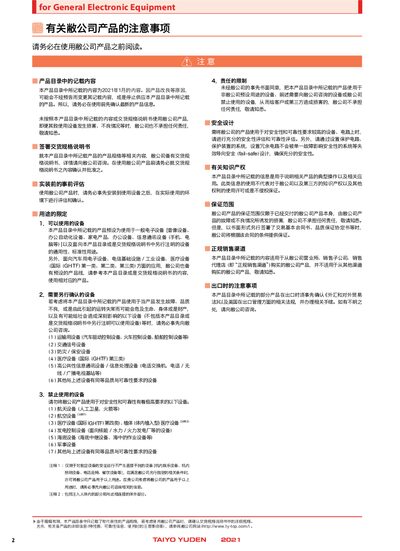

This datasheet provides specifications, dimensions, packaging, and reliability data for TY-Top's ME Series and ME-H Series metal wire-wound chip power…
The ME and ME-H series are metal‑wire wound chip power inductors designed for general electronic equipment. They operate from –40 °C to +125 °C and are supplied in tape‑and‑reel packaging for automated assembly.\n\nKey electrical parameters include inductance values from 0.47 µH to 4.7 µH with a tolerance of ±20 %. Mechanical dimensions are standardized (e.g., 2.0 × 1.6 mm for the MEKK2016 type) and the products are qualified for reflow soldering.
| Operating Temperature Range | -40 to +125 °C |
|---|---|
| Storage Temperature Range | -40 to +85 °C |
| Inductance Tolerance | ±20 % |
| Maximum Thickness | 1.0 mm |
| Packaging Quantity (Tape & Reel) | 3000 pcs per reel |
Reflow soldering is required.
The inductance tolerance is ±20 %.
The inductors operate from –40 °C to +125 °C.
Each reel contains 3000 pieces.
