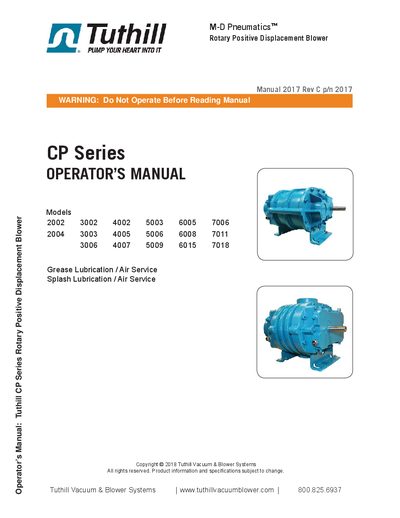

Operator's manual for Tuthill CP Series rotary positive displacement blowers covering installation, operation, maintenance, safety and specifications.
This manual provides detailed instructions for installing, operating, and maintaining the Tuthill CP Series rotary positive displacement blowers. It includes safety warnings, lubrication procedures, and troubleshooting guidance to ensure reliable long‑term service.
The document also contains technical specifications, parts lists, warranty information, and an operating data form for recording serial numbers and performance data. All content is intended for qualified personnel responsible for blower setup and service.
| Oil Capacity | 3.4 oz (101 mL) |
|---|---|
| Port Size | 1 in. (25 mm) |
| Weight | 41 lb (19 kg) |
| Maximum Operating Temperature | 400 °F (205 °C) |
Hearing protection is required and operators must keep body and clothing away from moving parts and hot surfaces.
The upper limit of blower operation is 400 °F (205 °C).
New Qx models have a 30‑month warranty; other new models have a 24‑month warranty, both measured from shipment date.
The 2002 model holds approximately 3.4 oz (101 mL) of oil.
