The manual provides safety guidance, system specifications, setup instructions and troubleshooting for the Turnigy TGY‑i10 10‑channel 2.4 GHz radio control…

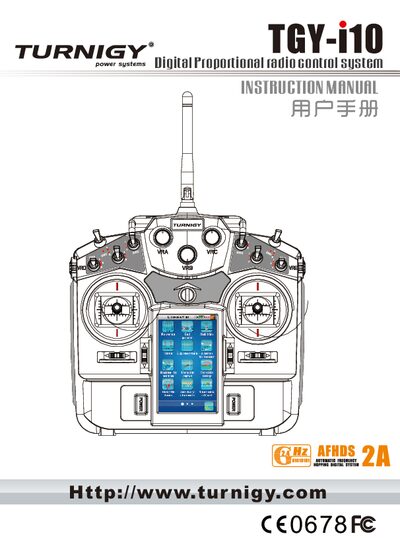

This user manual introduces the Turnigy TGY‑i10 digital proportional radio control system, covering its 10‑channel 2.4 GHz operation, compatible model types (helicopter, fixed‑wing, glider) and the system’s key features such as two‑way telemetry, fail‑safe protection and a touch‑screen interface.
It includes detailed safety instructions, battery handling advice, step‑by‑step setup procedures for transmitter and receiver, specifications of RF performance, hardware dimensions, and a troubleshooting guide. The document also lists packaging contents and FCC compliance information. This manual is written in Chinese.
| Frequency range | 2.4055‑2.475 GHz |
|---|---|
| Bandwidth | 500 kHz |
| Number of channels | 140 |
| Maximum RF power | ≤ 20 dBm (100 mW) |
| Antenna length | 26 mm (dual antenna) |
| Receiver sensitivity | -105 dBm |
| Transmitter weight | 653.5 g (incl. battery) |
| Power input (transmitter) | 3.7 V (800 mAh) |
| Dimensions (transmitter) | 278.59 mm × 189.35 mm × 95.87 mm |
| Color | Silver |
| Certification | CE, FCC |
The system supports 10 channels.
Transmit power must not exceed 20 dBm (100 mW).
