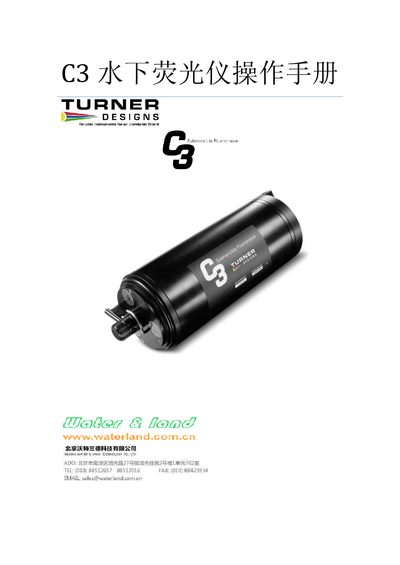

This manual explains setup, software, sensor options, and maintenance for the C3 underwater fluorometer by Turner Designs.
The C3 underwater fluorometer can be equipped with up to three optical sensors covering a spectral range from ultraviolet to infrared, a temperature sensor, and a depth probe rated to 600 m. The instrument includes optional pressure sensors and mechanical brushes, and it is controlled via a Windows‑based C‑Soft interface for calibration, data logging, and data transfer.
The manual provides detailed instructions for unpacking, mechanical installation, cable connections, and software installation. It also covers the C‑Soft user interface, data capture, calibration procedures, and maintenance tasks such as cleaning and connector care. Appendices describe cable pinouts and the use of secondary solid calibration standards. This manual is written in Chinese.
| Maximum deployment depth | 600 m |
|---|---|
| Supported optical sensor types | Turbidity, chlorophyll‑a, phycocyanin, CDOM, oil, dye, whitening agent, custom |
| Power supply | 12 V DC |
| Serial interface | 9‑pin RS232 |
| Minimum PC CPU | 133 MHz |
| Minimum PC RAM | 32 MB |
| Minimum display resolution | 600 × 800 VGA |
| Supported operating system | Microsoft Windows 98 |
The depth probe is rated for deployments to 600 meters.
