Truesource TS-508 Air Mattress User Manual

User manual for the Truesource TS-508 anti‑pressure sores alternating/static air mattress and pump replacement system.

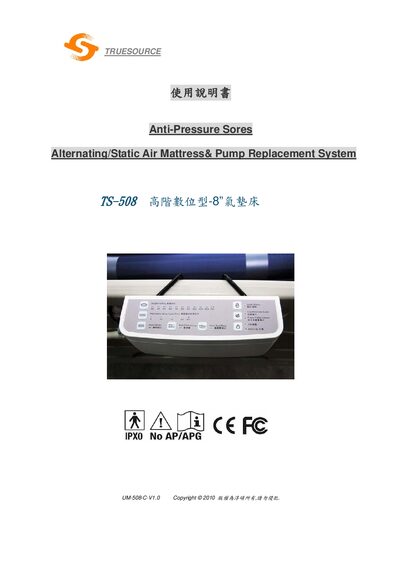

Truesource TS-508 Air Mattress User Manual - cover page
Brand
TRUESOURCE
Category
Other
Document type
User Manual
Language
Chinese
Pages
11
File format
PDF
File size
497 KB
Published
07 November, 2011
Updated
28 September, 2026
MD5 checksum
1AF13A4307B72EC882B1F137C723F20A
PDF
Truesource TS-508 Air Mattress User Manual PDF

About this manual

This manual explains the purpose, installation, operation, cleaning, and maintenance of the Truesource TS-508 air mattress system. It includes safety precautions, panel function settings, CPR quick‑deflation valve use, and power‑failure transfer instructions.

The document also provides troubleshooting steps, product specifications, and warranty information for both the main unit and the mattress. This manual is written in Chinese.

What's inside

  • Precautions
  • Purpose
  • Product Description
  • Installation Procedure
  • Panel Function Settings
  • CPR Quick Deflation Valve Use
  • Power Failure Bed Transfer Function
  • Cleaning and Maintenance
  • Troubleshooting
  • Product Specifications

Specifications

Input powerAC220‑240V/50Hz
External fuseT1AL/250V
Unit dimensions (L×W×H)L 26 × W 8 × H 13 cm
CertificationsCE, EN60601, EN60601‑1, EN60601‑1‑2, FCC Part 18‑Class B
Mattress dimensions (L×W×H)L200 × W90 × H20.5 cm
Load range30 kg ~ 200 kg
Air‑tube materialNylon/PU (8‑inch 21‑tube)
Base materialNylon/PVC

Frequently asked questions

What is the load capacity of the mattress?

The mattress supports a load range of 30 kg to 200 kg.
