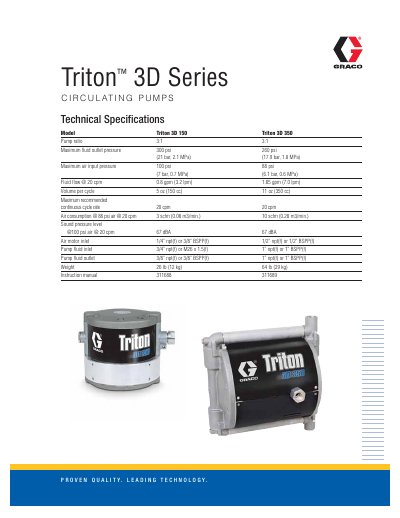

Technical specifications and ordering information for Triton 3D 150 and 3D 350 circulating pumps.
The Triton 3D series includes the 150 and 350 circulating pumps, designed for fluid handling in a variety of industrial applications. Both models feature a 3:1 pump ratio and are built with stainless steel and PTFE diaphragms for durability.
The data sheet provides detailed performance figures, thread options, and a full list of accessories and repair kits. It also includes part numbers for bare pumps, construction details, and recommended accessories such as wall brackets, suction hoses, and grounding kits.
| Pump ratio | 3:1 |
|---|---|
| Maximum fluid outlet pressure | 300 psi (3D 150), 260 psi (3D 350) |
| Fluid flow @ 20 cpm | 0.8 gpm (3D 150), 1.85 gpm (3D 350) |
| Air consumption @ 88 psi, 20 cpm | 3 scfm (3D 150), 10 scfm (3D 350) |
| Weight | 26 lb (12 kg) for 3D 150, 64 lb (29 kg) for 3D 350 |
| Sound pressure level @ 100 psi, 20 cpm | 67 dBA |
| Air motor inlet thread | 1/4” NPT(f) or 3/8” BSPP(f) (3D 150), 1/2” NPT(f) or 1/2” BSPP(f) (3D 350) |
| Pump fluid inlet thread | 3/4” NPT(f) or M26×1.5(f) (3D 150), 1” NPT(f) or 1” BSPP(f) (3D 350) |
Both the Triton 3D 150 and 3D 350 have a pump ratio of 3:1.
