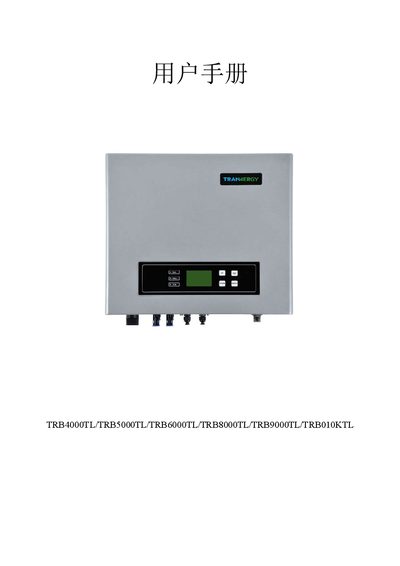

The Trannergy TRB series inverter user manual provides installation, operation, maintenance, safety information and technical specifications for models…
This manual introduces the Trannergy TRB series inverters, covering safety guidelines, system selection, mechanical and electrical design, and the five operating modes (standby, self‑test, normal, fault, programming). Detailed instructions are provided for installation, electrical connections, and commissioning of the PV and AC sides.
Further sections describe the human‑machine interface, communication options (RS‑232, RS‑485/422, wireless, USB), maintenance procedures, troubleshooting FAQs, warranty terms, and contact information for service and support. This manual is written in Chinese.
| Maximum DC input voltage | 1000 VDC |
|---|---|
| Open‑circuit voltage of PV strings | 910 V |
| Derating temperature threshold | 76 °C |
| Power device temperature limit | 85 °C |
The inverter operates in standby, self‑test, normal, fault, and programming modes.
