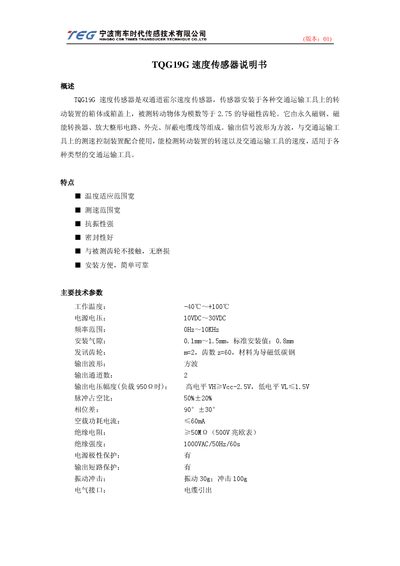

The TQG19G speed sensor manual provides specifications, wiring definitions, installation steps, usage instructions, and troubleshooting for the dual‑channel…
The TQG19G is a dual‑channel Hall speed sensor designed for installation on rotating parts of various transportation tools. It features a wide temperature range, broad speed detection range, strong vibration resistance, good sealing, non‑contact operation and easy installation.
The manual includes technical specifications, cable and connector wiring assignments, detailed installation and usage procedures, and fault handling guidance. It also shows the sensor’s dimensions and recommended mounting gap. This manual is written in Chinese.
| Working temperature | -40 °C to +100 °C |
|---|---|
| Power supply voltage | 10 VDC to 30 VDC |
| Frequency range | 0 Hz to 10 kHz |
| Installation gap (standard) | 0.8 mm |
| Output waveform | Square wave |
| Number of output channels | 2 |
| High‑level output voltage | VH ≥ Vcc − 2.5 V |
| Pulse duty cycle | 50 % ± 20 % |
| Phase difference | 90° ± 30° |
| No‑load current | ≤ 60 mA |
| Insulation resistance | ≥ 50 MΩ (500 V megohmmeter) |
| Vibration / shock rating | 30 g vibration, 100 g shock |
| Electrical interface | Cable lead out |
Adjust the gap to 0.8 mm as strongly recommended.
Power the sensor and bring a ferromagnetic piece close to or away from the sensor head; the output level will toggle high/low, indicating normal operation.
The sensor is likely damaged and should be replaced.
