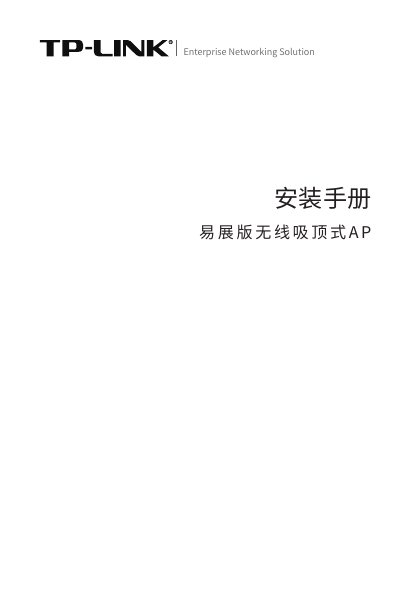

TP-LINK TL-XAP3006GC Ceiling AP Installation Manual

This manual covers the hardware features, installation methods (ceiling and wall), and network configuration for the TP-LINK TL-XAP3006GC EasyMesh ceiling…

Brand: TP-Link
Category: Other Electronics
Document type: Installation Guide
Language: Chinese
Pages: 28
File format: PDF
File size: 4.5 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B5197F67CB893A9426B833202496A8C1
PDF: TP-LINK TL-XAP3006GC Ceiling AP Installation Manual PDF

About this manual

The document is an installation guide for the TP-LINK TL-XAP3006GC-PoE/DC, a wireless ceiling access point designed for enterprise environments. It details hardware specifications, including support for standard PoE and DC power supplies, as well as FAT (Fat) and FIT (Fit) operating modes. This manual is written in Chinese.

What's inside

Product Introduction
Installation Preparation
Ceiling Installation
Wall Mounting
FAT AP Mode Configuration
FIT AP Mode Configuration

Frequently asked questions

What is the operating temperature range for this AP?

The device operates between 0°C and 40°C.

What power adapter specifications are required for DC power?

You must use a 12VDC power adapter with a 5.5mm*2.1mm connector.

What type of Ethernet cable is recommended for 1000Base-T networks?

It is recommended to use Category 5e or higher UTP/STP cable.
