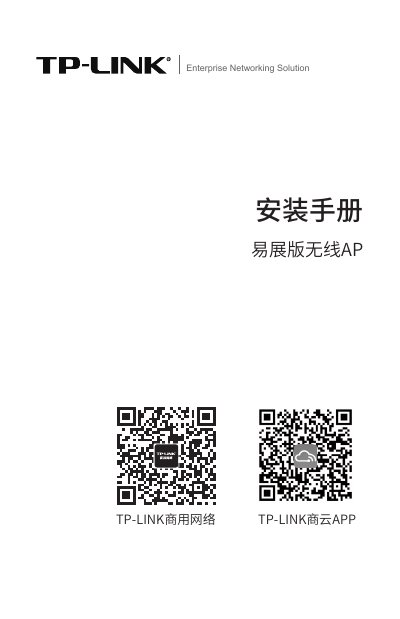

TP-LINK TL-XAP3001GP Easy Expand Outdoor AP Installation Manual

This manual provides installation instructions for the TP-LINK TL-XAP3001GP outdoor wireless access point, covering hardware connections and network…

Brand: TP-Link
Document type: Installation Guide
Language: Chinese
Pages: 24
File format: PDF
File size: 2.1 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B3C5DC435549E3C2E972C49EF37C1400
PDF: TP-LINK TL-XAP3001GP Easy Expand Outdoor AP Installation Manual PDF

About this manual

The document serves as an installation guide for the TP-LINK TL-XAP3001GP Easy Expand series dual-band outdoor wireless AP. It details product features such as support for IEEE 802.3at PoE, Passive PoE, and DC power (12V~53.5V), along with mounting options for wall or pole installation. This manual is written in Chinese.

What's inside

Product Introduction
Item List
Appearance Description
Precautions
Wall Mount Installation
Pole Mount Installation
Power Connection
FAT AP Mode Configuration
FIT AP Mode Configuration

Specifications

Power Supply Support	IEEE 802.3at PoE, 53.5V Passive PoE, 12V~53.5V DC
Coverage Pattern	360° outdoor omnidirectional wireless coverage

Frequently asked questions

What are the supported power supply standards?

The device supports IEEE 802.3at PoE, 53.5V Passive PoE, and DC power ranging from 12V to 53.5V.

How do I reset the AP to factory settings?

Press and hold the RESET key while powered on until the system indicator flashes 4 times, then release.
