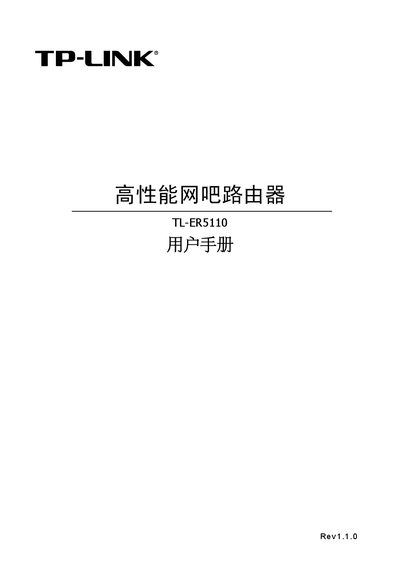

The TP-Link TL-ER5110 router user manual provides product overview, setup instructions, feature configuration, and specifications.
This manual is intended for technical personnel familiar with networking concepts and explains how to install, configure, and maintain the TL-ER5110 high‑performance router for Internet cafés, hotels, and similar environments. It covers product description, hardware features, and safety information.
The document is organized into chapters covering product introduction, web‑interface configuration guide, detailed feature settings (system maintenance, security policies, bandwidth control, routing, etc.), typical deployment examples, a command‑line interface overview, and appendices with FAQs, terminology, and full technical specifications. This manual is written in Chinese.
| LAN ports | 4 x 10/100M auto‑MDI/MDIX RJ45 |
|---|---|
| WAN port | 1 x 10/100M auto‑MDI/MDIX RJ45 |
| Console port | 1 x Console |
| Dimensions (L×W×H) | 440 mm × 220 mm × 44 mm |
| Power input | 100‑240 V ~ 50/60 Hz, 0.6 A |
| Maximum power consumption | 9.3 W |
| Operating temperature | 0 °C to 40 °C |
The router measures 440 mm × 220 mm × 44 mm (L × W × H).
The device consumes up to 9.3 W at maximum load.
