TOSEI V-4 Network Store Management System Controller User Manual

User manual for the TOSEI V-4 system controller, covering system configuration, operation, settings, error explanations, and integration with cash changers…

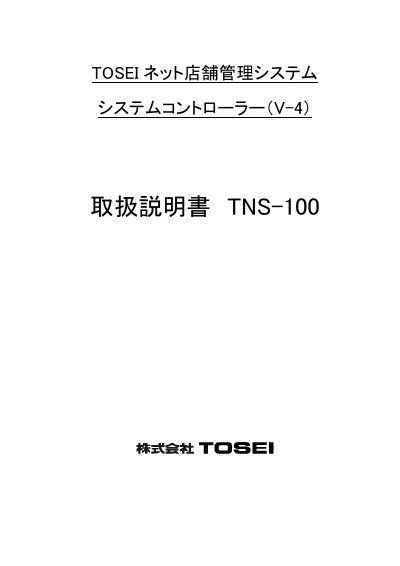

TOSEI V-4 Network Store Management System Controller User Manual - cover page
Brand
TOSEI
Document type
User Manual
Language
Japanese
Pages
50
File format
PDF
File size
1.4 MB
Published
27 October, 2026
Updated
27 October, 2026
MD5 checksum
129E72C00AD1A1C201811123574FA11B
PDF
TOSEI V-4 Network Store Management System Controller User Manual PDF

About this manual

This manual describes the TOSEI V-4 Network Store Management System Controller, a device used to collect sales and status information from laundry machines and other equipment within a store. It enables remote viewing of data, machine control, and remote refund processing via connection to a compatible cash changer. This manual is written in Japanese.

What's inside

  • System Configuration
  • System Controller Specifications
  • Operation Switches
  • Error Explanations
  • Setting Mode
  • Hello System Setting Mode
  • Printing Mode
  • External Input Connector
  • Hello Call System
  • Net Refund System

Specifications

Data Storage Duration3 years (36 months)
Communication with Embedded BoardRS-232C
Communication with Machines (no signal function)RS-485
Communication with Cash ChangerRS-232C

Frequently asked questions

What is the purpose of the TOSEI V-4 system controller?

It allows browsing store data like sales information and operating status via an internet-connected PC, changing passwords, saving data as CSV, and performing remote refunds.

Which machines can be connected without a signal cable?

Machines such as CT-150G/250G, CFW-320, CFR-321G, and CW-70 are connected via a signal cable to the external input connector.

What happens if a communication error occurs?

The system displays a communication abnormality error code, specifically ErrF.

Download PDF (1.4 MB)
