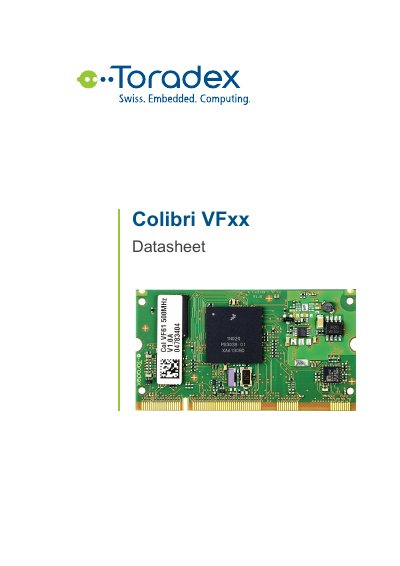

Technical specifications and interface details for Toradex Colibri VF50 and VF61 computer modules.
The Colibri VFxx series includes the VF50 and VF61 SODIMM‑sized computer modules based on the Freescale Vybrid SoC. VF50 features a single Cortex‑A5 core, while VF61 adds a Cortex‑M4 core for real‑time tasks. Both modules provide a wide range of interfaces such as USB 2.0, Ethernet, HDMI, CAN, and multiple GPIOs, targeting applications like digital signage, industrial automation, and robotics.
The datasheet covers hardware architecture, pin assignments, power requirements, mechanical dimensions, thermal specifications, and compliance information. It also lists supported operating systems, including Embedded Linux, Windows CE, Android, and real‑time OSes for the M4 core.
| Main module supply voltage range | -0.3 V to 3.6 V |
|---|---|
| Digital supply (3V3) recommended range | 3.135 V to 3.465 V |
| Analog supply (AVDD) recommended range | 3.0 V to 3.6 V |
| RTC supply (VCC_BATT) recommended range | 2.4 V to 3.6 V |
| Operating temperature range (module) | 0 °C to 70 °C |
