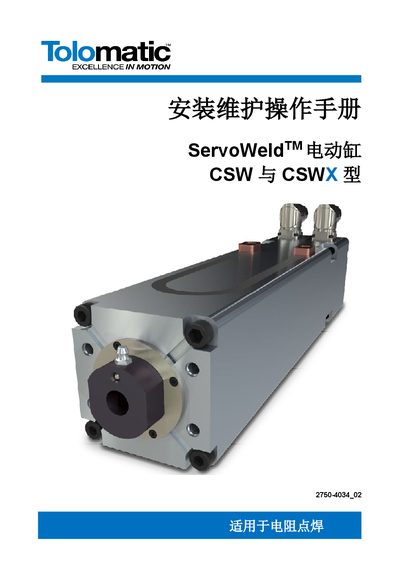

Tolomatic CSW/CSWX ServoWeld Electric Cylinder Installation and Maintenance Manual

About this manual

The manual begins with safety symbols, warnings and handling precautions that must be read before any unpacking, installation or operation of the ServoWeld electric cylinders. It outlines required personal protective equipment, emergency‑stop measures and storage conditions to prevent damage or injury.

Subsequent sections cover mechanical installation, electrical wiring, connector orientation, feedback options, and start‑up procedures. The document also includes a detailed technical specification table, troubleshooting flow‑charts, warranty information and EU compliance statements, enabling users to correctly integrate the CSW/CSWX cylinders into welding robots or other automation equipment. This manual is written in Chinese.

What's inside

• Safety Information
• Product Overview
• Configuration Overview
• Mechanical Installation
• Electrical Installation
• Operation and Startup
• Maintenance and Repair
• Technical Specifications
• Troubleshooting
• Warranty and Compliance

Specifications

Frequently asked questions

What is the recommended storage temperature range for the CSW/CSWX cylinders?

Store the cylinders between –25 °C and +60 °C.

What is the maximum stroke length available for the CSW series?

The CSW and CSWX cylinders have a stroke of 160 mm.

What motor winding voltages are supported by the cylinders?

The cylinders can be equipped with motor windings for 230 Vac or 460 Vac.
