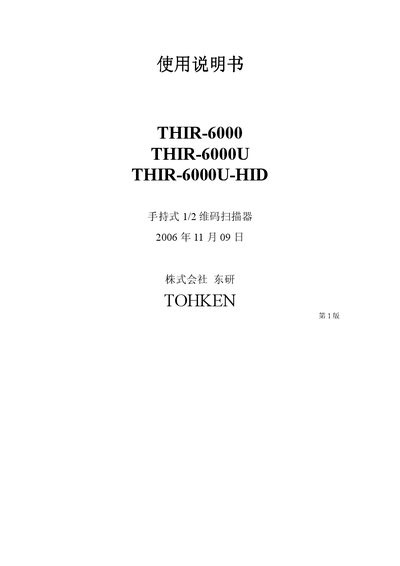

This manual provides usage instructions, safety notes, specifications, connection methods, and troubleshooting for the TOHKEN THIR-6000 series handheld 1/2…
The TOHKEN THIR-6000 series is a handheld scanner capable of reading 1‑D and 2‑D barcodes. It connects via RS‑232C or USB (including HID) and includes optional image capture functions for the THIR‑6000/THIR‑6000U models.
The manual covers safety precautions, unpacking, product overview, setup and operation procedures, communication interfaces, detailed specifications, appearance drawings, special functions, and a troubleshooting guide. This manual is written in Japanese.
| Dimensions | 150 mm (H) × 60 mm (W) × 98 mm (D) |
|---|---|
| Weight | 175 g (excluding cable) |
| LED Indicator Color | Red (wavelength 644 nm) |
| Illumination LED | White |
| Image Sensor | 1.3 MP color CMOS |
| Interfaces | RS‑232C (D‑sub 9‑pin), USB 1.1, USB HID |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -20 °C – 65 °C |
| Relative Humidity | 35 % – 85 % RH (non‑condensing) |
| Reading Angle Pitch | ±35° |
| Reading Angle Skew | ±35° |
| Reading Angle Tilt | 360° |
It reads 1‑D codes such as Code39, Code128, Codabar, ITF, RSS, Code93 and 2‑D codes including Data Matrix (ECC200), QR Code, Micro QR, PDF417, Micro PDF, Maxi Code and Composite.
