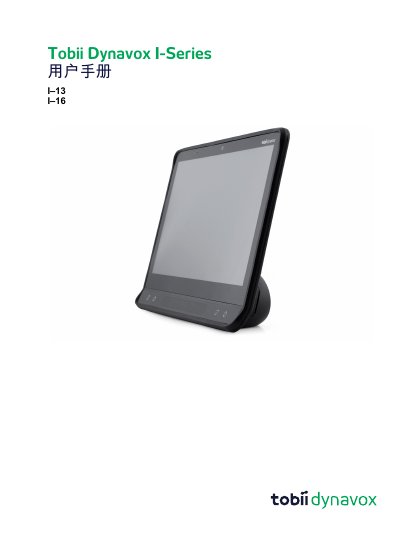

Chinese user manual for the TobiiDynavox I‑13 and I‑16 AAC devices, covering safety, setup, operation, battery care and technical specifications.
The TobiiDynavox I‑Series includes two tablet‑style AAC devices (13.3" I‑13 and 15.6" I‑16) with optional EyeGaze control. This manual provides safety warnings, unpacking guidance, hardware overview, battery handling, and step‑by‑step instructions for using the device, its accessories and software.
Key sections cover device startup, user account setup, EyeGaze calibration, volume and sound adjustments, hardware settings, battery replacement, and maintenance procedures. Appendices list support resources, compliance information, technical specifications, temperature limits and approved accessories. This manual is written in Chinese.
| Screen size (I‑13) | 13.3" LED backlight, 300 nits |
|---|---|
| Screen size (I‑16) | 15.6" LED backlight, 350 nits |
| Resolution | 1920×1080 (XGA) |
| Touchscreen | Projected capacitive, Gorilla® glass, 10‑point multi‑touch |
| Processor | Intel Core i5‑7300U |
| Memory | 8 GB LPDDR4 |
| Operating System | Windows 10 |
| Storage | 256 GB SATA SSD |
| USB ports | 2 × USB 3.0 (max 1500 mA) |
| Weight (I‑13) | 2.3 kg (5.0 lb) |
| Weight (I‑16) | 2.7 kg (6.0 lb) |
| Battery runtime | ≈9 h (I‑13) / ≈8 h (I‑16) |
| Battery charging time | ≤5.4 h (0‑100 %) |
The I‑13 runs for about 9 hours and the I‑16 for about 8 hours on a full charge.
Only the TDGG1 battery group sold by TobiiDynavox may be used for replacement.
The charging cable can pose a choking hazard for children; it should not be left unattended with young children.
