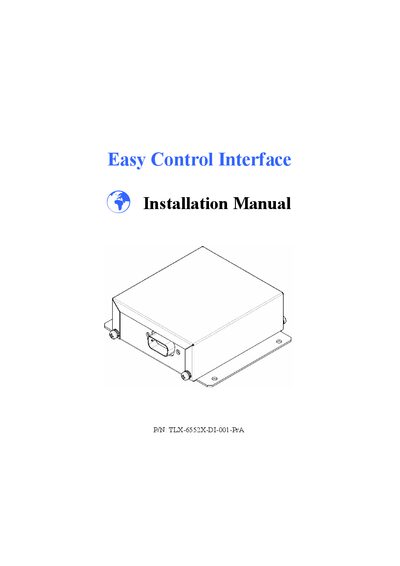

Installation manual for the TL‑6552 Easy Control Interface, detailing wiring, mechanical dimensions, power requirements and CAN‑bus communication.
The TL‑6552 Easy Control Interface provides a communication link between the INTEGRA Glass Cockpit and a Joystick Controller. This installation guide covers general information, technical specifications, recommended wiring practices, mechanical drawings and electrical pin assignments.
The manual includes safety warnings, power and wiring recommendations (22 AWG MIL‑W‑22759/16), and a step‑by‑step installation procedure to ensure reliable operation in aircraft environments.
| Width | 90 mm |
|---|---|
| Height | 28.5 mm |
| Depth | 76 mm |
| Weight | 100 g |
| Operating Temperature Range | -30°C to +70°C |
| Humidity | 95% non‑condensing |
| Altitude Range | 9750 meters max (32000 ft max) |
| Power Range | 10 to 32 Volts |
| Power Consumption | 0.18 A @ 14 VDC |
| Vibration | 5 to 500 Hz |
| Communication | CAN BUS (iFamily® BUS) 250 kbps |
The interface consumes 0.18 A at 14 VDC.
22 AWG wire meeting Mil Standard MIL‑W‑22759/16 is recommended.
It uses a CAN bus (iFamily® BUS) operating at 250 kbps.
