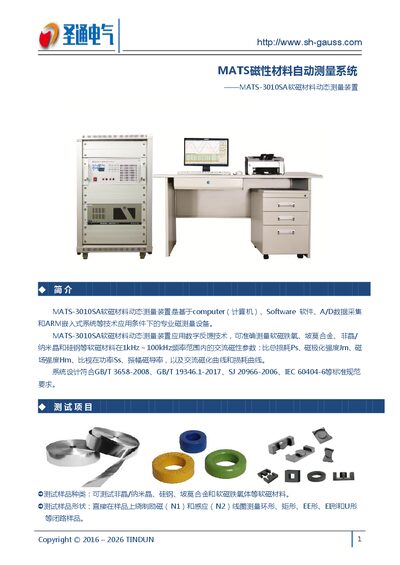

The TINDUN MATS-3010SA is a magnetic material dynamic measurement system that measures AC magnetic parameters from 1 kHz to 100 kHz.
The MATS-3010SA dynamic measurement device uses computer, software, A/D data acquisition and an ARM embedded system to accurately measure soft magnetic materials such as ferrite, permalloy, amorphous/nanocrystalline alloys and silicon steel. It supports measurement of total loss, magnetization strength, magnetic field strength, apparent power, and permeability over a frequency range of 1 kHz‑100 kHz.
The system is operated with the SMTest measurement software on Windows 7, offering Chinese, English and Russian interfaces. It provides automatic continuous measurement of up to 255 test points, real‑time waveform display, data export to Excel or JPG, and full report generation with customizable headers. This manual is written in Chinese.
| Maximum Output Power | 1000 VA (1 kHz‑40 kHz) / 650 VA (40 kHz‑100 kHz) |
|---|---|
| Frequency Range | 1 kHz – 100 kHz |
| Frequency Resolution | <0.1 % × current value |
| Output Voltage | 0‑10‑50‑100‑300 V four‑range auto‑scale |
| Maximum Output Current | 0 – 10 A |
| Sampling Rate | 40 MHz × 2 channels |
| Resolution | 12 Bit ± ½ LSB |
| Voltage Range (ADC) | ±1 V (full scale) |
| Memory Capacity | 512 kByte × 2 |
It measures magnetic parameters from 1 kHz up to 100 kHz.
The system uses the SMTest measurement software, available in Chinese, English and Russian.
It requires a single‑phase 220 V, 50 Hz input power.
