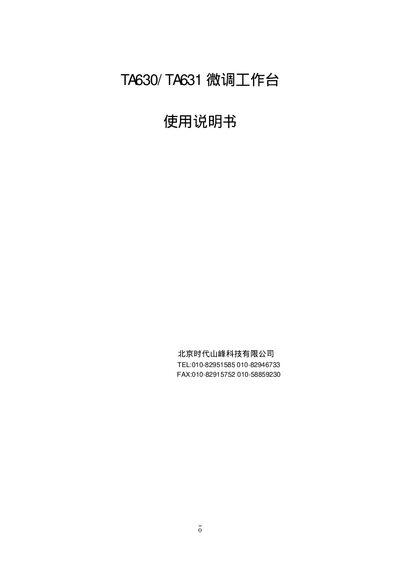

The Timeshan TA630/TA631 precision translation stage user manual provides an overview, operation instructions, and technical specifications.
The TA630 and TA631 are high‑precision translation stages with X‑Y micro‑adjustment and rotational adjustment. They are designed to be used with measurement platforms for surface and sensor measurements, and feature a clamping mechanism and precision ball‑screw drive.
The manual describes the device’s features, how to perform X‑Y and rotational adjustments, the travel range and resolution, and includes a typical measurement example. It also provides maintenance guidance such as regular cleaning and storage. This manual is written in Chinese.
| X‑axis resolution | 12.5 nm |
|---|---|
| Y‑axis resolution | 12.5 nm |
| Travel range (X/Y) | 12.5 mm |
The X and Y axes can move up to 12.5 mm.
After use, clean the device regularly and store it in its packaging.
