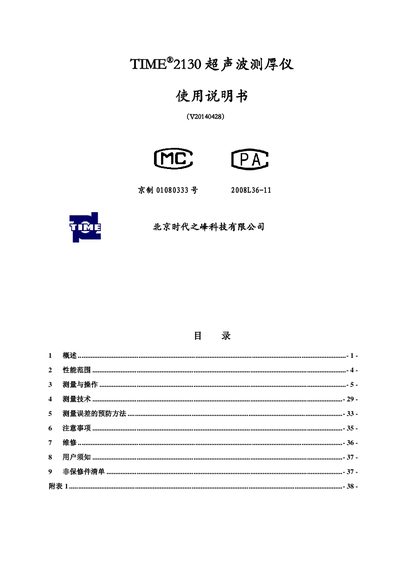

TIME 2130 Ultrasonic Thickness Gauge User Manual

User manual for the TIME 2130 ultrasonic thickness gauge, covering operation, measurement techniques, settings, and maintenance.

Brand: TIME
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 21
File format: PDF
File size: 364 KB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 1A8B95D8DD3FE415E00E2D8719D570CF
PDF: TIME 2130 Ultrasonic Thickness Gauge User Manual PDF

About this manual

This manual provides instructions for the TIME 2130 ultrasonic thickness gauge, a device used to measure the thickness of various materials using ultrasonic pulse transmission. It is suitable for measuring plates, parts, pipes, and pressure vessels in industries such as petrochemical, metallurgy, and aerospace. This manual is written in Chinese.

What's inside

Overview
Performance Range
Measurement and Operation
Measurement Techniques
Prevention of Measurement Errors
Precautions
Maintenance
User Instructions

Specifications

Measurement Range	0.75mm~225.0mm
Display Resolution	0.01mm or 0.1mm
Operating Temperature	0℃～40 ℃
Power Source	Two 5号 dry batteries
Weight	Approx. 250g

Frequently asked questions

What is the measurement range of the TIME 2130?

The measurement range is from 0.75mm to 225.0mm.

What is the display resolution of the instrument?

The display resolution is 0.01mm or 0.1mm.

What is the operating temperature range?

The instrument operates within a temperature range of 0℃ to 40℃.
