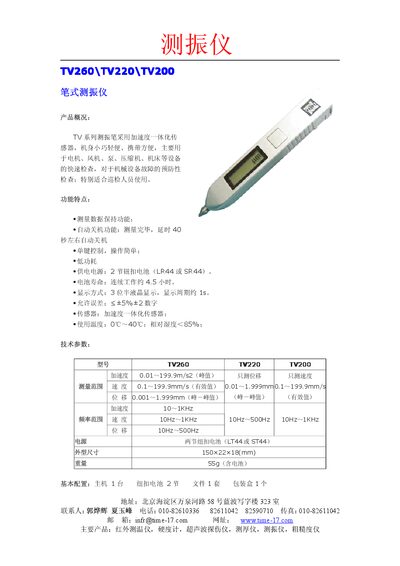

The Time-17 TV260 vibration pen manual provides specifications, features, and operating instructions for quick vibration measurement.
The TV260 series vibration pens from Time-17 are compact, battery‑powered devices designed for rapid vibration checks on motors, fans, pumps, compressors and machine tools. They feature an integrated acceleration sensor, LCD display and single‑key operation for easy field use.
Key functions include data hold, automatic shutdown after about 40 seconds, low power consumption, and a measurement accuracy of ±5 % ± 2 digits. The manual lists the full technical specifications, measurement ranges and basic accessories supplied with each unit. This manual is written in Chinese.
| Acceleration range | 0.001 – 199.9 m/s² (peak) |
|---|---|
| Displacement range | 0.001 – 1.999 mm (peak‑to‑peak) |
| Velocity range | 0.1 – 199.9 mm/s (RMS) |
| Frequency range (Acceleration) | 10 – 1 kHz |
| Frequency range (Velocity) | 10 – 1 kHz |
| Frequency range (Displacement) | 10 – 500 Hz |
| Power supply | 2 button cells (LR44 or SR44) |
| Battery life | ≈4.5 h continuous |
| Display | 3½‑digit LCD, ~1 s update |
| Dimensions | 150 × 22 × 18 mm |
| Weight | 55 g (incl. batteries) |
The device can operate continuously for about 4.5 hours on a fresh set of batteries.
It measures acceleration from 0.001 to 199.9 m/s² (peak).
After measurement, the unit powers down automatically after a delay of about 40 seconds.
It uses two button cells, either LR44 or SR44.
