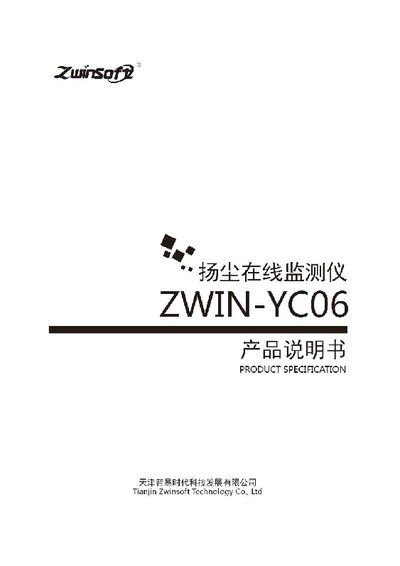

User manual for the ZWIN‑YC06 dust monitoring instrument covering installation, operation, maintenance and troubleshooting.
This manual provides technical staff with detailed information on the ZWIN‑YC06 dust monitoring instrument, including its configuration parameters, system architecture, and sensor modules. It also describes the installation steps for the pole, device, and LED display, as well as software operation.
Operational guidance covers SIM‑card installation, power‑up procedures, indicator light meanings, and software settings. Maintenance tips, fault diagnosis, and warranty information are included to ensure reliable long‑term use. This manual is written in Chinese.
| Particle sensor detection principle | 光散射原理 |
|---|---|
| Particle sensor resolution | 0.1 µg/m³ |
| Particle size channels | PM2.5, PM10 |
| Particle detection range | 0–1000 µg/m³ |
| Noise sensor measurement range | 30–130 dB |
| Wind speed range | 0–45 m/s |
| Wind speed resolution | 0.1 m/s |
| Temperature range | -40 °C to 120 °C |
| Humidity range | 0–100 %RH |
| Power supply | 12 V–24 V |
| Communication protocol | Modbus RTU |
| IP protection rating | IP65 |
A continuously lit red light on the main board shows that the device is operating normally.
The particle sensor uses the light‑scattering principle to detect dust particles.
Warranty and repair are provided according to the purchase contract; free repair is offered within the warranty period for covered failures.
