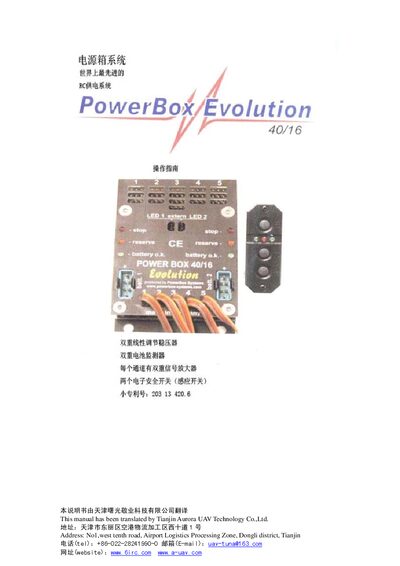

The Tianjin Aurora PowerBox 40/16 user manual explains installation, operation, safety and maintenance for the dual‑battery RC power supply.
This manual introduces the PowerBox 40/16, a dual‑battery power supply designed for radio‑controlled aircraft. It describes the system’s features, circuit diagram, interfaces, controllers, safety guidelines, and the built‑in induction switch.
The document also covers battery monitoring, LED indicators, switching procedures, and warranty information, providing step‑by‑step instructions for safe and reliable use. This manual is written in Chinese.
| Operating voltage | 4.0 V to 9.0 V |
|---|---|
| Power supply (battery types) | Two 5‑cell Ni‑Cd/Ni‑MH batteries or two 2‑cell Li batteries (7.4 V) |
| Current loss | ≈ 70 mA |
| Voltage drop | ≈ 0.25 V |
| Maximum receiver current | 2 × 10 A (stable) |
| Servo connectors | 16 ports, 5 channels |
| Maximum continuous current | 20 A |
| Operating temperature range | -10 °C to +75 °C |
| Dimensions (including base plate) | 91 × 65 × 19 mm |
| Weight | 100 g |
| Induction switch weight | 15 g |
It can be powered by two 5‑cell Ni‑Cd or Ni‑MH batteries, or by two 2‑cell Li batteries (7.4 V).
The LEDs indicate each battery’s voltage level with green, orange or red flashing to signal normal, warning or low voltage conditions.
The product comes with a 24‑month warranty from the date of purchase.
