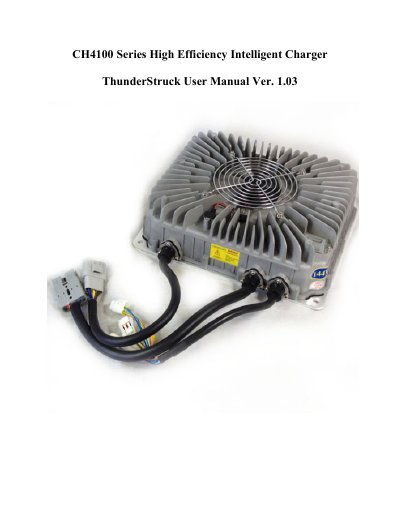

User manual for the ThunderStruck CH4100 Series high efficiency intelligent charger designed for electric vehicle traction batteries.
The ThunderStruck CH4100 Series High Efficiency Intelligent Charger is designed to charge traction batteries for electric vehicles. It utilizes advanced technologies including LLC resonant, active power factor correction, and microcomputer measurement and control to ensure high conversion efficiency and low electromagnetic interference. The unit features an IP66 protection grade for high water resistance and includes safety functions such as reverse battery connection protection, output short circuit protection, and overheating protection.
| Rated input voltage | 220VAC 50/60Hz |
|---|---|
| Input voltage range | 85~265VAC |
| Nominal output voltage | 144V |
| Maxim output voltage | 180V |
| Rated output current | 15A |
| Conversion efficiency | ≥ 95% |
| Protection class | IP66 |
| Audible Noise | ≤ 40dB |
| Working temperature | -25~55°C |
The cables' core diameter must be at least 2.5mm in diameter.
A flashing green light indicates that the charger is charging normally.
Unplug the power immediately and contact the service department.
The extension cable length should be limited within 10m.
