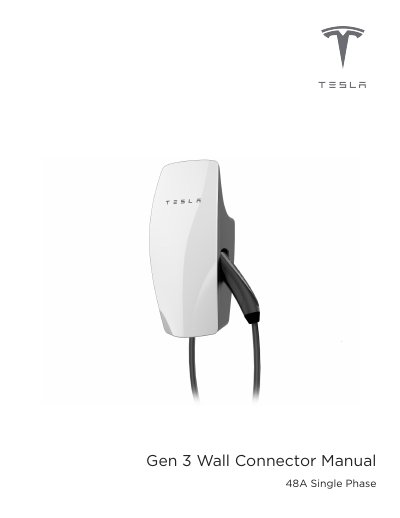

The Tesla Gen 3 Wall Connector User Manual provides safety guidelines, specifications, installation steps, and usage instructions for the 48 A single‑phase…
This manual covers important safety information, product overview, and detailed specifications for the Tesla Gen 3 Wall Connector, a 48 A single‑phase EV charging unit. It includes dimensions, wiring requirements, temperature limits, and integrated features such as GFCI protection and Wi‑Fi connectivity.
Installation procedures, commissioning steps, power‑sharing options, LED fault codes, and warranty details are also provided, helping qualified installers and owners set up and maintain the charger safely and efficiently.
| Nominal Voltage | 200‑240 V AC single‑phase |
|---|---|
| Current Output Range | 12 – 48 A |
| Maximum Output (60 A breaker) | 48 A, 11.5 kW at 240 V |
| Cable Length | 7.3 m (24 ft) |
| Dimensions (H × W × D) | 13.6 in × 6.1 in × 4.3 in |
| Operating Temperature | -22 °F to 122 °F (-30 °C to 50 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Ground Fault Protection | Integrated Type B RCD (GFCI) |
| Wi‑Fi Connectivity | 2.4 GHz 802.11b/g/n |
With a 60 A circuit breaker the connector can deliver up to 48 A (11.5 kW at 240 V).
No. The Wall Connector includes integrated GFCI protection and a GFCI breaker must not be installed.
The unit operates from –22 °F to 122 °F (‑30 °C to 50 °C).
The cable length is 7.3 m (24 ft).
