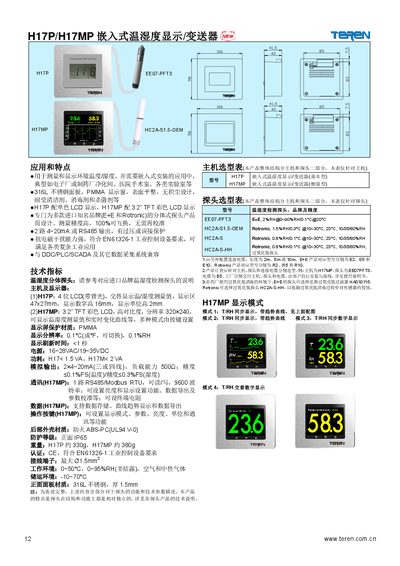

The Teren H17P/H17MP embedded temperature and humidity display/transmitter provides high‑accuracy measurement with LCD/TFT screens, 4‑20 mA or RS485 output…
The H17P/H17MP series is designed for embedded installation in clean‑room, laboratory, hospital and pharmaceutical environments. It features a 316L stainless‑steel front panel, a PMMA viewing window, and supports a wide range of imported temperature‑humidity probes (E+E, Rotronic) with 100 % interchangeability and no recalibration required. The unit offers 2‑channel 4‑20 mA or RS485 communication, strong EMI immunity (EN61326‑1) and compatibility with DDC/PLC/SCADA systems.
Technical specifications include a monochrome LCD for the H17P model and a 3.2" TFT colour LCD (320×240) for the H17MP model, power supply 16‑28 VAC/19‑35 VDC, power consumption under 2 VA, accuracy ≤0.1 %FS (temperature) / ≤0.3 %FS (humidity), IP65 front protection, operating temperature 0‑50 °C and humidity up to 95 %RH (non‑condensing). The devices weigh approximately 330 g (H17P) or 380 g (H17MP). This manual is written in Chinese.
| Display type | Monochrome LCD (H17P) or 3.2" TFT colour LCD (H17MP) |
|---|---|
| Resolution | 320×240 |
| Power supply | 16~28 VAC / 19~35 VDC |
| Power consumption | < 1.5 VA (H17P) / < 2 VA (H17MP) |
| Output | 2‑channel 4‑20 mA or RS485 |
| Accuracy | ≤0.1 %FS (temperature) / ≤0.3 %FS (humidity) |
| Protection rating | IP65 (front) |
| Weight | ≈330 g (H17P) / ≈380 g (H17MP) |
| Operating temperature | 0 °C – 50 °C |
| Humidity range | 0 % – 95 % RH (non‑condensing) |
The H17P model uses a monochrome LCD, while the H17MP model uses a 3.2" colour TFT LCD.
The H17MP provides one RS485/Modbus RTU port (9600 baud, read/write) and a 4‑20 mA analog output.
The front panel of the unit is rated IP65.
