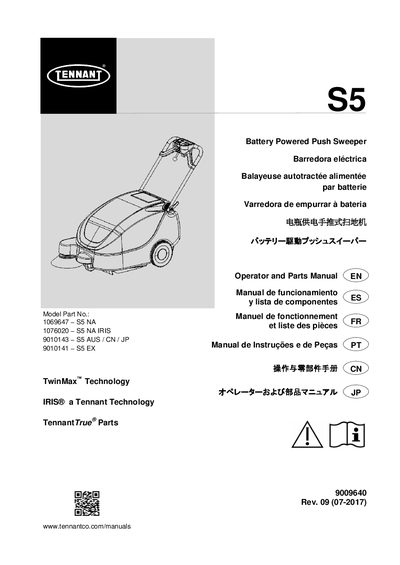

This manual provides operation, maintenance, safety instructions, and parts information for the Tennant S5 battery-powered push sweeper.
The document serves as an operator and parts manual for the Tennant S5 Battery Powered Push Sweeper. It is intended for commercial use in buildings, warehouses, parking lots, and sidewalks to pick up dry, nonflammable dust and debris on hard floors and carpets. The machine features a 12V battery with an onboard charger and includes IRIS® Telemetry technology.
| Length | 923 mm / 37 in |
|---|---|
| Width | 650 mm / 25 in |
| Height | 557 mm / 22 in |
| Weight | 55 kg / 121 lb |
| Sweeping Path Width | 620 mm / 24 in |
| Main Brush Width | 400 mm / 16 in |
| Hopper Capacity | 37 L / 9.8 Gal |
| Battery Capacity | 12 V, 50 Ah |
The machine has a maximum slope capability of 2%.
No, the machine is not suitable for wet surfaces or picking up flammable materials.
The onboard charger is configured specifically for a 12V sealed GEL battery.
