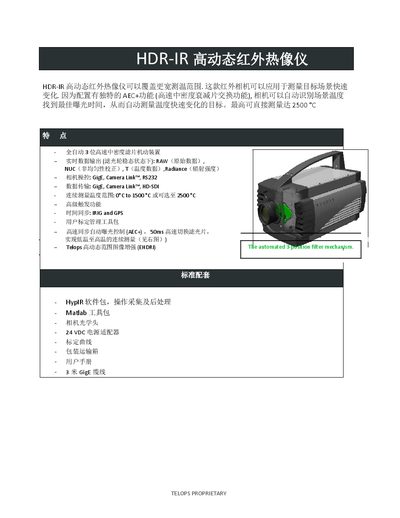

The Telops HDR-IRM100k is a high‑dynamic‑range infrared camera with up to 2500 °C measurement, 115 Hz full‑frame rate, and multiple interfaces.
The HDR‑IR high‑dynamic‑range infrared camera is designed for fast‑changing temperature scenes. It features an automatic exposure control (AEC+) with a 3‑position high‑speed filter mechanism, real‑time data output (RAW, NUC, temperature, radiance), and advanced trigger and time‑sync functions (IRIG and GPS). The camera supports GigE, CameraLink™, RS232 control and GigE, CameraLink™, HD‑SDI data transfer.
Standard accessories include the HypIR software package, Matlab toolkit, optical head, 24 VDC power adapter, calibration curve, transport box, user manual, and a 3 m GigE cable. Technical specifications cover a 1 GB high‑speed memory, operating temperature –15 °C to +50 °C, storage –35 °C to +60 °C, MCT detector with 640 × 512 pixel resolution, 16 µm pixel size, spectral range 3–4.9 µm, NETD 17 mK, and frame rates up to 115 Hz. This manual is written in Chinese.
| Measurement range | 0 °C to 1500 °C (optional up to 2500 °C) |
|---|---|
| Resolution | 640 × 512 pixels |
| Pixel size | 16 µm |
| Spectral range | 3 µm to 4.9 µm |
| NETD | 17 mK |
| Full‑frame frame rate | 115 Hz |
| Memory | 1 GB high‑speed memory |
| Operating temperature | -15 °C to +50 °C |
| Storage temperature | -35 °C to +60 °C |
| Detector type | MCT |
| Control interfaces | GigE, CameraLink™, RS232 |
| Data interfaces | GigE, CameraLink™, HD‑SDI |
It can measure up to 2500 °C (optional range).
Control uses GigE, CameraLink™ and RS232; data can be transferred via GigE, CameraLink™ or HD‑SDI.
The package includes the HypIR software, Matlab toolkit, optical head, 24 VDC power adapter, calibration curve, transport box, user manual and a 3 m GigE cable.
It uses an MCT detector.
