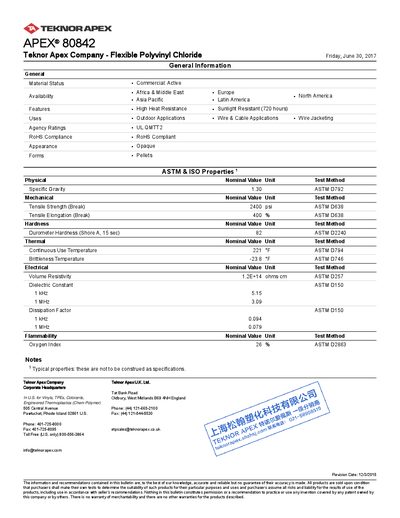

Technical data sheet for Teknor Apex 80842 flexible polyvinyl chloride, covering material properties, ratings and compliance.
The APEX® 80842 flexible polyvinyl chloride is a commercial‑grade polymer offered by Teknor Apex for outdoor, wire and cable applications. It features high heat resistance, sunlight resistance for up to 720 hours, and is RoHS compliant.
The sheet lists detailed physical, mechanical, thermal, electrical and flammability properties, including specific gravity, tensile strength, hardness, continuous use temperature, volume resistivity and oxygen index, along with agency ratings such as UL QMTT2.
| Specific Gravity | 1.30 |
|---|---|
| Tensile Strength (Break) | 2400 psi |
| Tensile Elongation (Break) | 400 % |
| Durometer Hardness (Shore A, 15 sec) | 82 |
| Continuous Use Temperature | 221 °F |
| Brittleness Temperature | -23.8 °F |
| Volume Resistivity | 1.2E+14 Ω·cm |
| Dielectric Constant (1 kHz) | 5.15 |
| Dissipation Factor (1 kHz) | 0.094 |
| Oxygen Index | 26 % |
| RoHS Compliance | Yes |
| Agency Rating | UL QMTT2 |
The specific gravity is 1.30.
Yes, the material is RoHS compliant.
The continuous use temperature is 221 °F.
It carries the UL QMTT2 rating.
