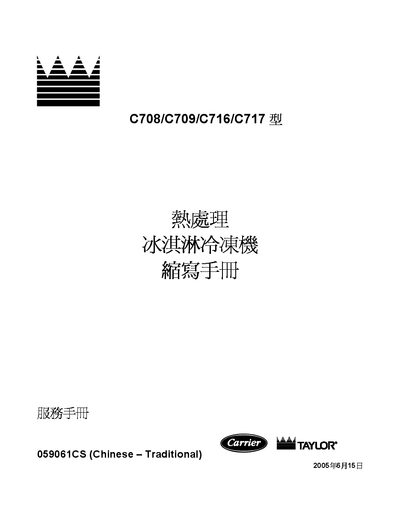

Taylor's service manual for the C708/C709/C716/C717 heat‑treatment freezers, covering safety, installation, operation, troubleshooting and parts.
This manual provides detailed information for authorized service technicians on Taylor's C708, C709, C716 and C717 heat‑treatment freezers. It includes safety guidelines, refrigerant handling, specifications, general installation steps, operating indicators, operator requirements, controller settings, heat‑treatment cycles and extensive troubleshooting procedures.
The document also contains a comprehensive parts list with part numbers, diagrams and warranty information, as well as regulatory compliance tables for hazardous substances. It is intended solely for Taylor‑authorized technical service personnel. This manual is written in Chinese.
| Refrigerant | R404A |
|---|---|
| Noise level | ≤ 78 dB(A) at 1 m and 1.6 m |
| Recommended indoor operating temperature | 70‑75 °F (21‑24 °C) |
| Maximum ambient temperature for operation | 104 °F (40 °C) |
The freezers use R404A refrigerant.
The noise level does not exceed 78 dB(A) measured at 1 m and 1.6 m from the machine.
Normal indoor operation is recommended at 70‑75 °F (21‑24 °C).
Yes, they can operate up to 104 °F (40 °C) in higher ambient conditions.
