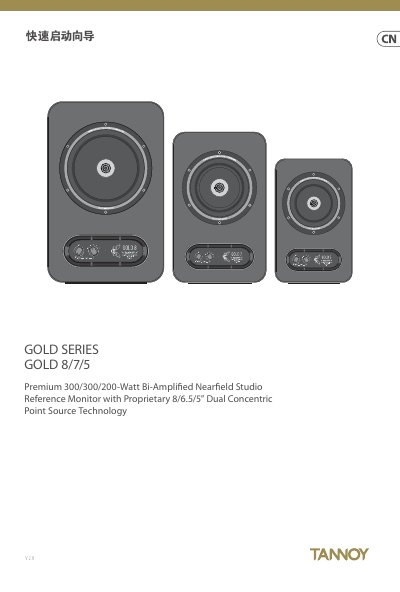

This document is the quick start guide for Tannoy GOLD 8/7/5 Premium bi-amplified nearfield studio monitors, covering setup, controls, and specifications.
This manual serves as a quick start guide for the Tannoy GOLD SERIES GOLD 8/7/5 Premium bi-amplified nearfield studio reference monitors. It details safety warnings, unboxing procedures, and instructions on how to register the product online with Music Tribe Global Brands Ltd.
The guide provides comprehensive setup instructions including speaker positioning guidelines (0.75 to 3 meters from the listener), connection methods for balanced XLR or unbalanced 1/4" TRS inputs, and a specific procedure for linking two monitors using the Monitor Link feature. It also explains the function of various controls such as Input Trim, HF Trim, Bass adjustment, and Automatic Standby. This manual is written in Chinese.
| Frequency Response (GOLD 8) | 54 Hz – 20 kHz ±3 dB |
|---|---|
| Max SPL (GOLD 8) | 110 dB |
| Crossover Type | 2-way, Active |
| Power Output (GOLD 8) | 300 Watts |
These monitors are designed as nearfield monitors, typically positioned 0.75 to 3 meters from the listener.
Connect a signal source to the first speaker's INPUT, then use the included cable to link the first speaker's MONITOR LINK jack to the second speaker's MONITOR LINK jack.
The device requires an IEC power cord connected to AC power, compatible with voltages from 100-240 V ~ at 50/60 Hz.
