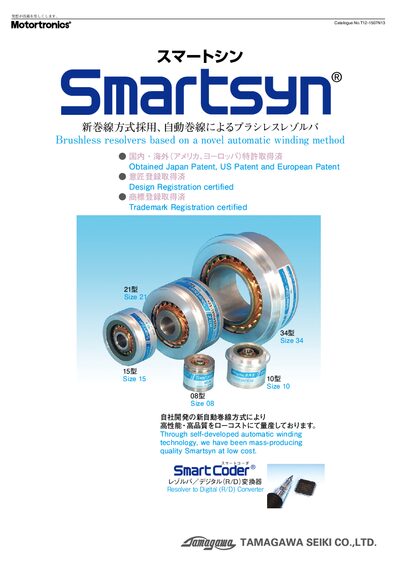

The catalogue describes Tamagawa Seiki's Smartsyn brushless resolvers, their features, specifications, mounting methods, and usage guidelines.
Smartsyn is a brushless resolver that converts rotational angles into electrical signals using a novel automatic winding method. The device consists of a rotary transformer and a sensing section that outputs sine and cosine voltages proportional to shaft angle.
The catalogue provides detailed specifications for five size variants (08, 10, 15, 21, 34), outlines mounting accuracy requirements, cautions for proper use, and information on the optional R/D converter that digitises the analog signals for robot and motor controllers. This manual is written in Japanese.
| Operating temperature range | -55 °C to +155 °C (most models) |
|---|---|
| Electrical error (accuracy) | ± 10′ Max |
| Residual voltage | 20 mV rms Max |
| Allowable rotation speed | 40,000 rpm (size 08) / 10,000 rpm (others) |
The device operates from –55 °C up to +155 °C for most sizes.
Use an input voltage within ±20 % of the specified value.
The 08 size can rotate up to 40,000 rpm.
