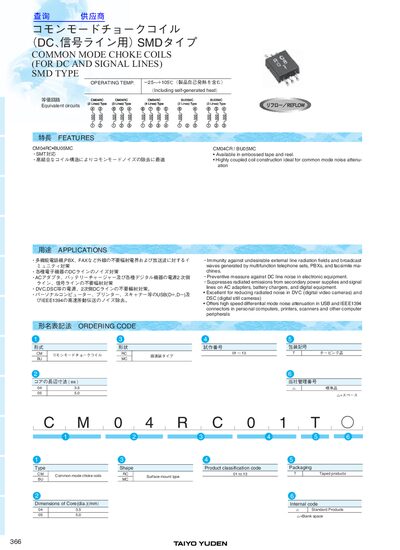

Technical specifications, packaging and handling guidelines for Taiyo Yuden CM04RC and BU05MC SMD common‑mode choke coils.
This datasheet provides detailed electrical characteristics, dimensions, and reliability data for the CM04RC and BU05MC surface‑mount common‑mode choke coils. It includes information on impedance, rated current, insulation resistance, and recommended operating conditions.
The document also covers packaging options, handling precautions, soldering recommendations, and storage guidelines to ensure reliable performance in electronic equipment such as computers, printers, and communication devices.
| Operating Temperature Range | see specification |
|---|---|
| Impedance at 60 MHz (BU05MC) | 0.12 Ω |
| Packaging Type | Embossed tape and reel |
The products are supplied in embossed tape and reel formats.
