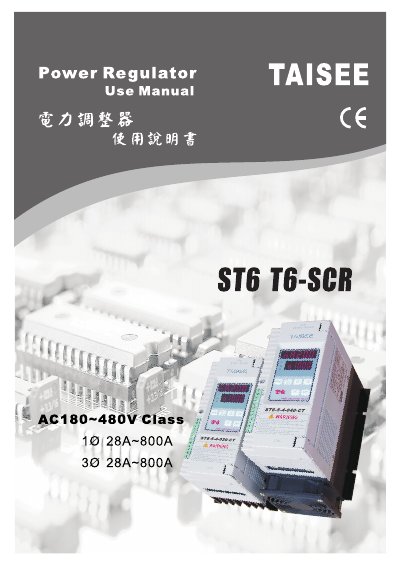

User manual for the TAISEE ST6‑SCR series power regulator covering specifications, installation, wiring, and operation.
The TAISEE ST6‑SCR series is a power regulator designed for single‑phase and three‑phase applications. This manual provides detailed information on model specifications, installation requirements, wiring diagrams, controller functions, and communication settings.
It also includes safety warnings, parameter setting examples, load testing procedures, and alarm handling instructions to help users install, configure, and maintain the regulator safely and efficiently.
| Input voltage range | AC180 V ~ AC480 V |
|---|---|
| Maximum current (single‑phase) | 28 A ~ 60 A |
| Output mode | Zero‑cycle, Phase‑shift, Constant current, Constant voltage |
| Analog input range | 0 ~ 10 V |
Turn off the power, lock the terminal screws tightly, and avoid touching any live parts to prevent electric shock.
The regulator should be installed in an environment with ambient temperature from –20 °C to 65 °C and humidity between 0 % and 95 %, avoiding temperatures above 40 °C without cooling.
The device uses Modbus RS‑485 communication, with configurable baud rates and message formats.
