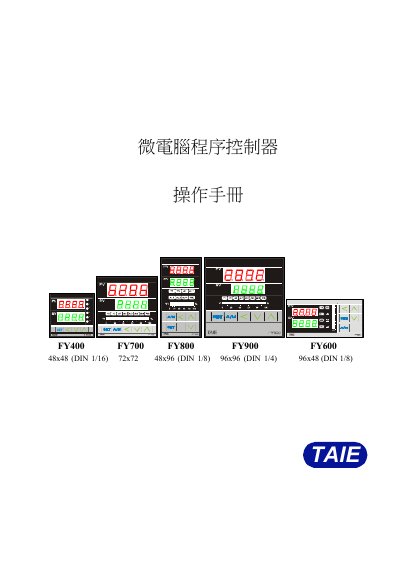

Technical manual for TAIE FY400‑FY900 temperature controllers covering specifications, installation, operation and programming.
The TAIE FY400‑FY900 series are modular temperature controllers available in DIN sizes from 48 × 48 mm to 96 × 96 mm. The manual provides detailed information on hardware dimensions, wiring, input ranges, output types and configuration options.
Key sections include product specifications, installation guidelines, programming levels, communication interfaces (RS232/RS485/TTL), safety compliance and troubleshooting procedures, enabling users to set up and operate the controllers efficiently. This manual is written in Chinese.
| Input voltage (AC) | 85~265 V |
|---|---|
| Input voltage (DC option) | 15~50 V |
| Output – Relay | 3 A, 220 V |
| Output – SSR | ON: 20 V, OFF: 0 V |
| Analog output options | 4~20 mA, 0~20 mA, 0~5 V, 0~10 V |
The controllers operate from 85 V to 265 V AC.
A DC input of 15 V to 50 V is offered as an option.
The controllers support RS232, RS485 and TTL serial interfaces.
