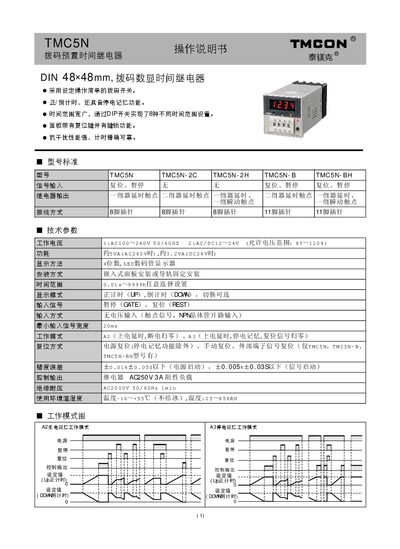

The TMC5N DIN×mm DIP digital time relay manual provides specifications, wiring diagrams, installation dimensions, and operation instructions.
The TMC5N is a DIN‑mountable digital time relay with DIP switches for setting a wide time range (0.01 s – 9999 h). It supports up‑count, down‑count, and optional power‑loss memory modes, and offers both LED and numeric display options. The relay includes delayed and instant contacts, and can be reset via a panel key or external signal.
Installation can be done as an embedded panel or DIN‑rail mount; the panel thickness is about 15 mm. The manual details wiring connections, safety precautions such as keeping signal wires away from high‑power lines, and the maximum load rating of 250 V AC / 3 A resistive. Technical parameters, wiring diagrams, and DIP‑switch settings are provided for proper configuration. This manual is written in Chinese.
| Operating Voltage | AC 100‑240 V, 50/60 Hz |
|---|---|
| Power Consumption | 5 VA |
| Display Method | 4‑digit LED and numeric display |
| Time Range | 0.01 s – 9999 h |
| Relay Load Capacity | AC 250 V, 3 A resistive |
| Insulation Voltage | AC 2000 V |
| Panel Thickness | ~15 mm |
Use the 8‑position DIP switches to select a time from 0.01 s up to 9999 h as shown in the time‑range table.
Press the reset key on the panel or apply a reset signal to the reset terminal; avoid power‑cycling for frequent resets to extend device life.
The relay can switch a resistive load up to 250 V AC at 3 A.
