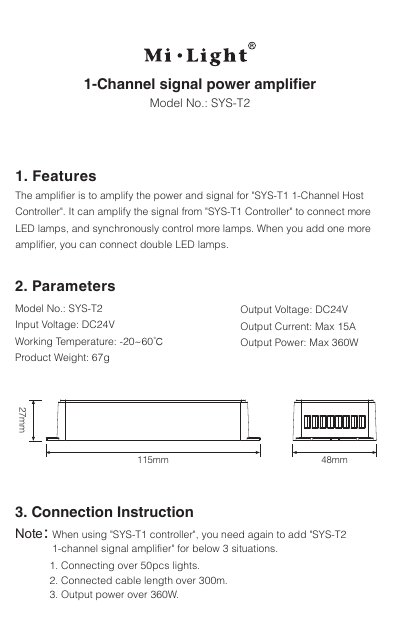

Product leaflet for the SYS SYS-T2 1-Channel Signal Power Amplifier, designed to amplify signals for the SYS-T1 Host Controller to drive more LED lamps.
The SYS-T2 is a 1-Channel signal power amplifier designed to amplify the power and signal from the SYS-T1 1-Channel Host Controller. It allows users to connect a greater number of LED lamps and synchronously control them. When an additional amplifier is added, the system can support double the number of LED lamps.
| Input Voltage | DC24V |
|---|---|
| Output Voltage | DC24V |
| Output Current | Max 15A |
| Output Power | Max 360W |
| Working Temperature | -20~60℃ |
| Product Weight | 67g |
It is needed when connecting over 50 lights, when the cable length exceeds 300m, or when the output power exceeds 360W.
The maximum output power is 360W.
