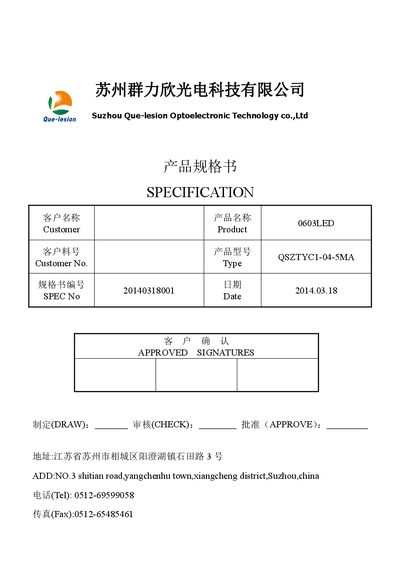

Suzhou Que-lesion Optoelectronic QSZTYC1-04-5MA Yellow LED Datasheet

About this manual

The QSZTYC1-04-5MA is a 0603 yellow LED designed for optical indicators, indoor displays, automotive lighting, LCD backlights, tubular lights and general use. It offers an extremely wide viewing angle and is suitable for all SMT assembly and soldering processes.

The component is packaged at 4000 pieces per reel, has a moisture‑sensitivity level of 3, and complies with EU RoHS standards. The datasheet also includes packaging specifications and a soldering guideline for reliable assembly. This manual is written in Chinese.

What's inside

• Features
• Description
• Applications
• Packaging
• Soldering Guideline

Specifications

Frequently asked questions

What is the moisture sensitivity level of the QSZTYC1-04-5MA LED?

It has a moisture sensitivity level of Level 3.

Is the QSZTYC1-04-5MA LED RoHS compliant?

Yes, the LED meets RoHS standards.

How many LEDs are packaged per reel?

Each reel contains 4000 pieces.

What applications is the QSZTYC1-04-5MA LED suitable for?

It can be used for optical indicators, indoor displays, automotive lighting, LCD backlights, tubular lights and general use.
