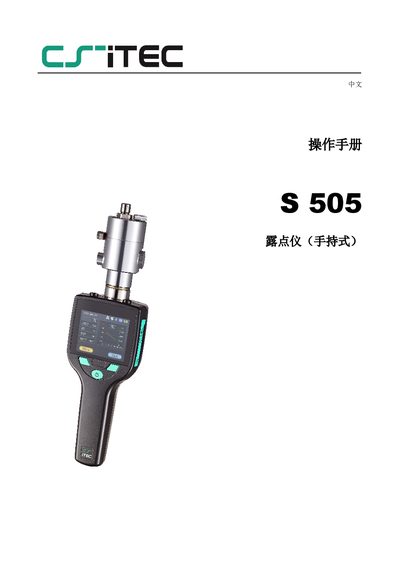

User manual for the SUTO iTEC S 505 handheld dew point meter, covering safety, installation, operation, calibration and warranty.
The S 505 handheld dew point meter from SUTO iTEC is designed for industrial compressed‑air and gas applications. This manual provides safety guidelines, installation steps, operation instructions, and maintenance procedures to ensure accurate dew‑point, temperature and pressure measurements.
Key sections include technical specifications, optional accessories, software usage, calibration methods, and warranty information. Users are advised to read the entire manual before operating the instrument and to follow the recommended maintenance schedule. This manual is written in Chinese.
| Dew‑point range (Sensor A) | -100°Ctd to -30°Ctd |
|---|---|
| Dew‑point range (Sensor B) | -50°Ctd to 50°Ctd |
| Pressure range | -0.1 to 1.5 MPa |
| Temperature range | -30°C to 50°C |
| Dew‑point accuracy | ± 2°Ctd @ -50°C |
| Power input | 5 V / 2 A via USB charger |
| Weight (with measurement chamber) | 0.7 kg |
The instrument is covered by a 24‑month warranty from the date of delivery under normal use.
No, the device is not permitted for use in explosive environments.
Calibration and verification should be performed at least once a year.
Store the unit at temperatures between –40 °C and 65 °C.
