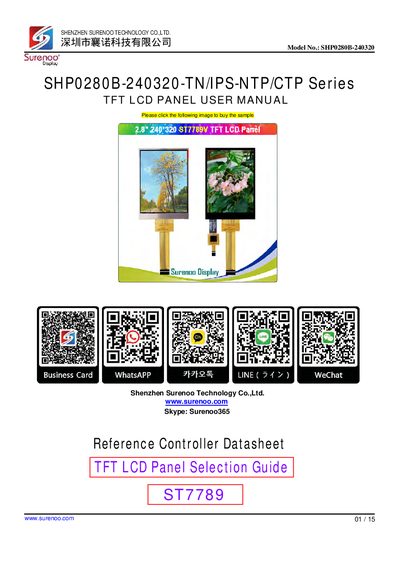

The Surenoo SHP0280B-240320 TFT LCD Panel User Manual provides specifications, wiring, and operation details for the 2.8‑inch display.
This manual describes the SHP0280B-240320 TFT LCD Panel, covering general description, mechanical specifications, dimensions, and mechanical tolerances. It also details the electrical maximum ratings, brightness characteristics, power dissipation, and the module function description, including pin assignments and interface signals.
Additional sections cover response time and contrast ratio, viewing angle specifications, reliability testing procedures, inspection standards, and packaging methods. The document includes circuit diagrams for the backlight and touch controller, as well as a full list of I/O pins for integration.
| Resolution | 240x320 |
|---|---|
| Interface type | 4‑line SPI |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -30°C to 80°C |
| LCD driver IC | ST7789V |
| Touch controller | GT911 |
| Backlight LED type | White LED (parallel) |
The panel operates from –20 °C up to 70 °C.
It can be stored between –30 °C and 80 °C.
The panel uses the ST7789V driver IC.
