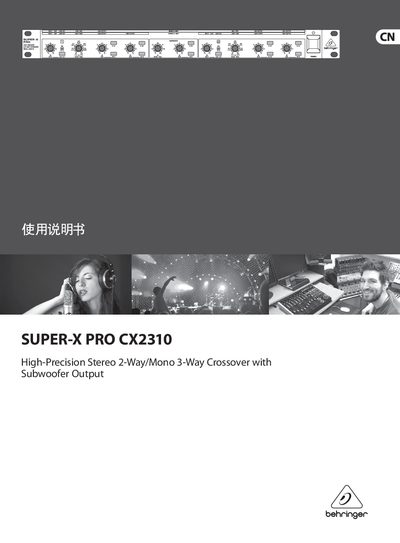

The SUPER-X PRO CX2310 crossover user manual provides operation instructions, control element descriptions, audio connections, and technical specifications.
This manual introduces the SUPER‑X PRO CX2310 active crossover, explaining its purpose for dividing speaker signals into separate frequency bands. It covers safety warnings, warranty terms, and the steps to register the product online.
The document details the control elements for stereo 2‑way and mono 3‑way modes, audio connection types, application guidelines, and full technical specifications such as input/output impedance, frequency response, and power consumption. This manual is written in Chinese.
| Input impedance (balanced) | >50 kΩ |
|---|---|
| Maximum input level | +22 dBu |
| CMRR | >40 dB ( >55 dB @ 1 kHz ) |
| Maximum output level | +20 dBm |
| Bandwidth | 20 Hz ~ 20 kHz, +0/‑0.5 dB |
| Dimensions | 44.5 × 482.6 × 215 mm |
| Net weight | 2.3 kg |
The input gain can be adjusted from –12 dB to +12 dB.
It measures 44.5 × 482.6 × 215 mm (1.75 × 19 × 8.5 in).
