The FT0H474Z super capacitor datasheet provides specifications, dimensions, ratings, and performance details for short‑time backup applications.

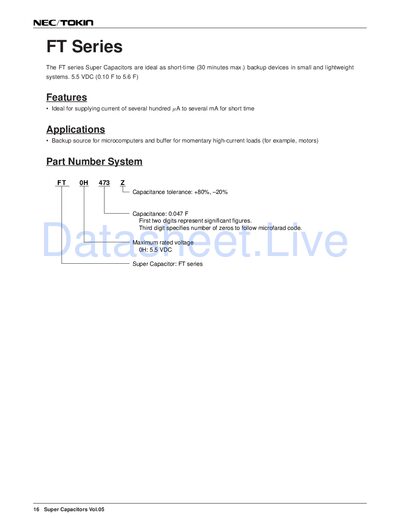

The FT0H474Z is part of the FT series super capacitors designed for short‑time (up to 30 minutes) backup in small, lightweight systems. It offers a nominal capacitance of 0.047 F with a tolerance of +80 % / –20 % and a maximum rated voltage of 5.5 VDC, making it suitable for supplying several hundred µA to a few mA for brief periods.
The datasheet lists detailed electrical and mechanical specifications, including operating temperature range from –40 °C to +85 °C, surge voltage of 6.3 V at 85 °C, and negative lead polarity. Dimensions, markings, and test conditions are also provided to aid integration and reliability assessment.
| Capacitance | 0.047 F |
|---|---|
| Capacitance tolerance | +80 % / –20 % |
| Maximum rated voltage | 5.5 VDC |
| Operating temperature range | -40 °C to +85 °C |
| Surge voltage (85 °C) | 6.3 V |
| Lead polarity | Negative |
The maximum rated voltage is 5.5 VDC.
The capacitance tolerance is +80 % / –20 %.
It can operate from –40 °C to +85 °C.
The surge voltage at 85 °C is 6.3 V.
