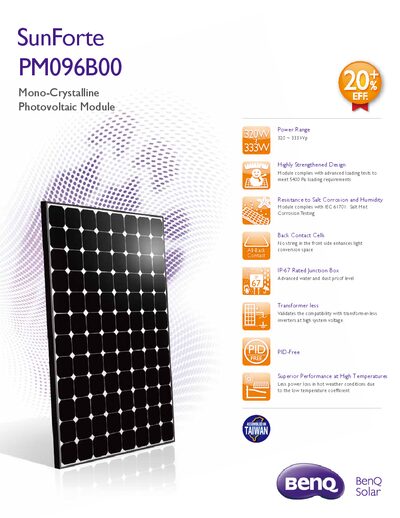

The SunForte PM096B00 datasheet provides electrical, mechanical, and warranty specifications for the 320‑333 W photovoltaic module.
The SunForte PM096B00 is a high‑strength mono‑crystalline photovoltaic module with back‑contact cells and an IP‑67 rated junction box. It is designed to meet advanced loading tests up to 5400 Pa and is compatible with transformer‑less inverters.
The datasheet lists the module’s power range, efficiency, temperature coefficients, dimensions, weight, operating temperature, system voltage, and warranty details, along with certifications such as IEC/EN 61215, IEC/EN 61730 and UL 1703.
| Power range | 320 ~ 333 Wp |
|---|---|
| Nominal efficiency | 20.4 % |
| Temperature coefficient (Pₙ) | -0.33 %/K |
| Dimensions (L×W×H) | 1559 × 1046 × 46 mm |
| Weight | 18.6 kg |
| Maximum system voltage | 1000 V |
| Operating temperature range | -40 ~ +80 °C |
| Junction box rating | IP‑67 |
| Product warranty | 10 years |
The module delivers between 320 Wp and 333 Wp.
It measures 1559 × 1046 × 46 mm and weighs 18.6 kg.
SunForte offers a 10‑year warranty for material and workmanship.
It complies with IEC/EN 61215, IEC/EN 61730 and UL 1703 standards.
