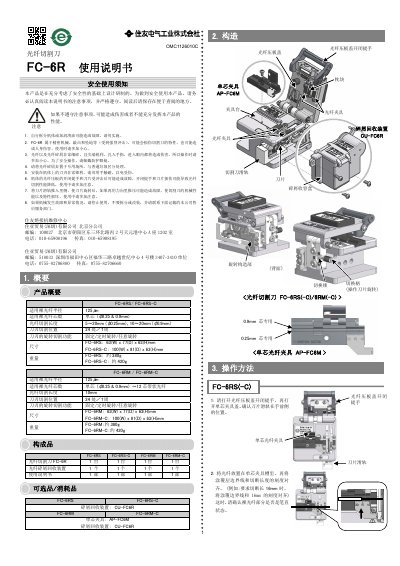

This manual provides operating instructions, safety precautions, and maintenance guidelines for the Sumitomo Electric FC-6R series fiber cutters.
This document is the user manual for the Sumitomo Electric FC-6R series of fiber cutters, specifically models FC-6RS, FC-6RS-C, FC-6RM, and FC-6RM-C. It covers the product's construction, safety warnings, and detailed operating procedures for cutting single-core and multi-core ribbon fibers. This manual is written in Chinese.
| Applicable bare fiber radius | 1, 2, 5 μm |
|---|---|
| Applicable bare fiber core count | Single core (φ0.25 & 0.9mm) |
| Fiber cutting length (φ0.25mm) | 5～20mm |
| Fiber cutting length (φ0.9mm) | 10～20mm |
| Blade cutting positions | 2 or 4 places per rotation |
| Blade rotation function | Fixed/Timer rotation/Arbitrary rotation |
| Dimensions (FC-6RS) | 63(W) x 77(D) x 63(H)mm |
| Weight (FC-6RS) | Approx. 380g |
Wear protective glasses as fiber shards are sharp and can cause injury to fingers or eyes.
Place the fiber straight in the single-core fixture slot and align the coating boundary line with the cut length scale.
Pull out the switch handle and rotate it to the desired position (Fixed, Timer, or Arbitrary) indicated on the switch lock.
After cutting, push the rail in again to rotate the blade approximately 15 degrees for the next cut.
